Wrekin Ductile DMS1B2/6045/K B125 S/S 600x450x40mm 25kg

Wrekin Ductile DMS1B2/6045/K B125 S/S 600x450x40mm BS EN124:2015 25kg

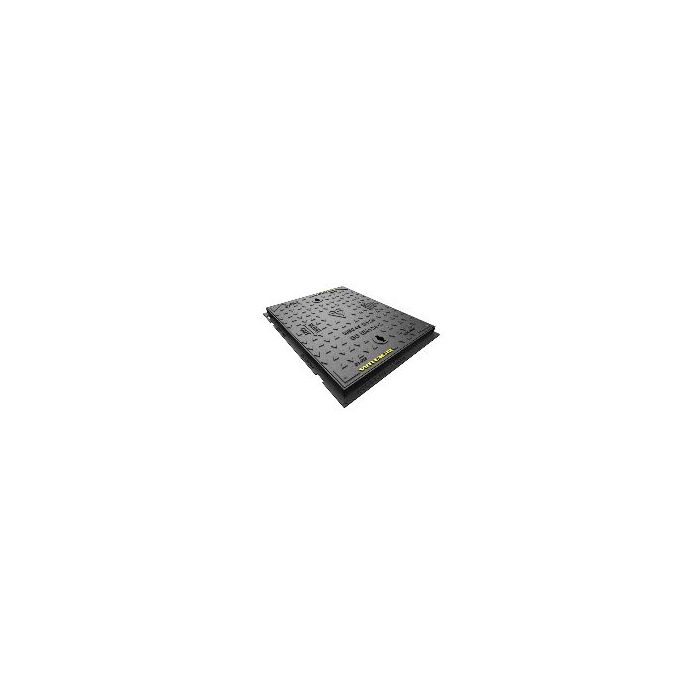

The Wrekin Ductile DMS1B2/6045/K B125 Solid Top Access Cover is a high-quality, ductile iron access solution designed to provide safe, durable, and secure coverage for underground utility chambers. Manufactured to BS EN124:2015 standards, this solid top cover is engineered for medium-duty applications in areas such as footways, driveways, and light-use car parks.

Product Features/Specifications:

Crafted from robust ductile iron, this access cover measures 600mm x 450mm with a depth of 40mm, and weighs approximately 25kg. It features a solid top design with a galvanised steel frame, ensuring long-lasting protection against weathering, corrosion, and mechanical stress. The cover is B125 load-rated, supporting up to 12.5 tonnes, making it ideal for pedestrian and light vehicle traffic.

Detailed Product Benefits:

Built with performance and longevity in mind, the DMS1B2/6045/K is manufactured using high-strength ductile iron for superior impact resistance and durability. Its **galvanised steel seating** provides enhanced corrosion resistance, while the precision fit ensures reduced wear and noise. Designed to meet the latest BS EN124:2015 specification, this cover guarantees compliance, safety, and performance in a variety of urban and domestic environments.

The solid top design also prevents debris ingress and enhances security, especially in public spaces or private properties where tamper resistance is crucial. Its 25kg weight ensures a sturdy install without excessive handling requirements, making it both reliable and practical for contractors and maintenance teams.

Applications and Versatility:

This access cover is ideal for use in:

• Driveways and private car parks where light vehicular access is frequent
• Pedestrian footpaths and walkways, offering secure coverage with minimal trip hazard
• Residential and light commercial developments requiring reliable chamber access
• Service duct chambers, cable pits, and other non-highway utility enclosures

Thanks to its solid top and corrosion-resistant materials, it offers a clean finish and minimal maintenance — ideal for both functional and aesthetic integration in landscaping or surface finishes.

Features & Benefits List:

• Manufactured from ductile iron for high strength and durability
• B125 load rating – suitable for 12.5 tonne loading (foot traffic and light vehicles)
• Conforms to BS EN124:2015 standards
• 600mm x 450mm x 40mm dimensions
• Solid top prevents debris entry and enhances safety
• Galvanised steel seating for added corrosion resistance
• Lightweight for easy handling – approx. 25kg
• Designed for easy installation and long service life

Technical Specifications:

• Material: Ductile Iron
• Finish: Solid Top with Galvanised Steel Seating
• Load Rating: B125 – 12.5 tonnes
• Standard: BS EN124:2015
• Cover Size: 600mm x 450mm
• Depth: 40mm
• Weight: Approx. 25kg

Additional Information:

Due to the weight and nature of this product, manual handling procedures should be followed to prevent injury. For bulk orders, mechanical lifting or palletised delivery may be required. Please contact your nearest Emerys Builders Merchants branch to confirm stock availability and delivery options.
